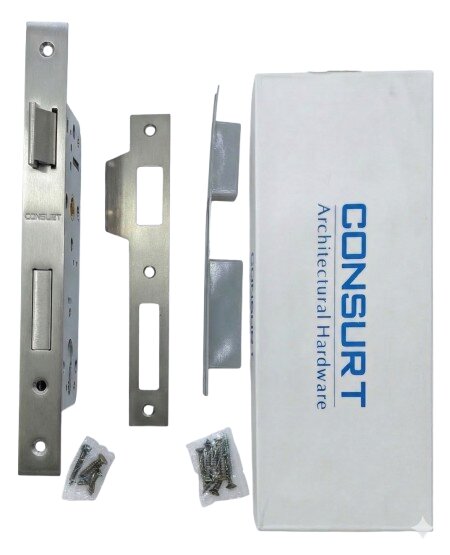

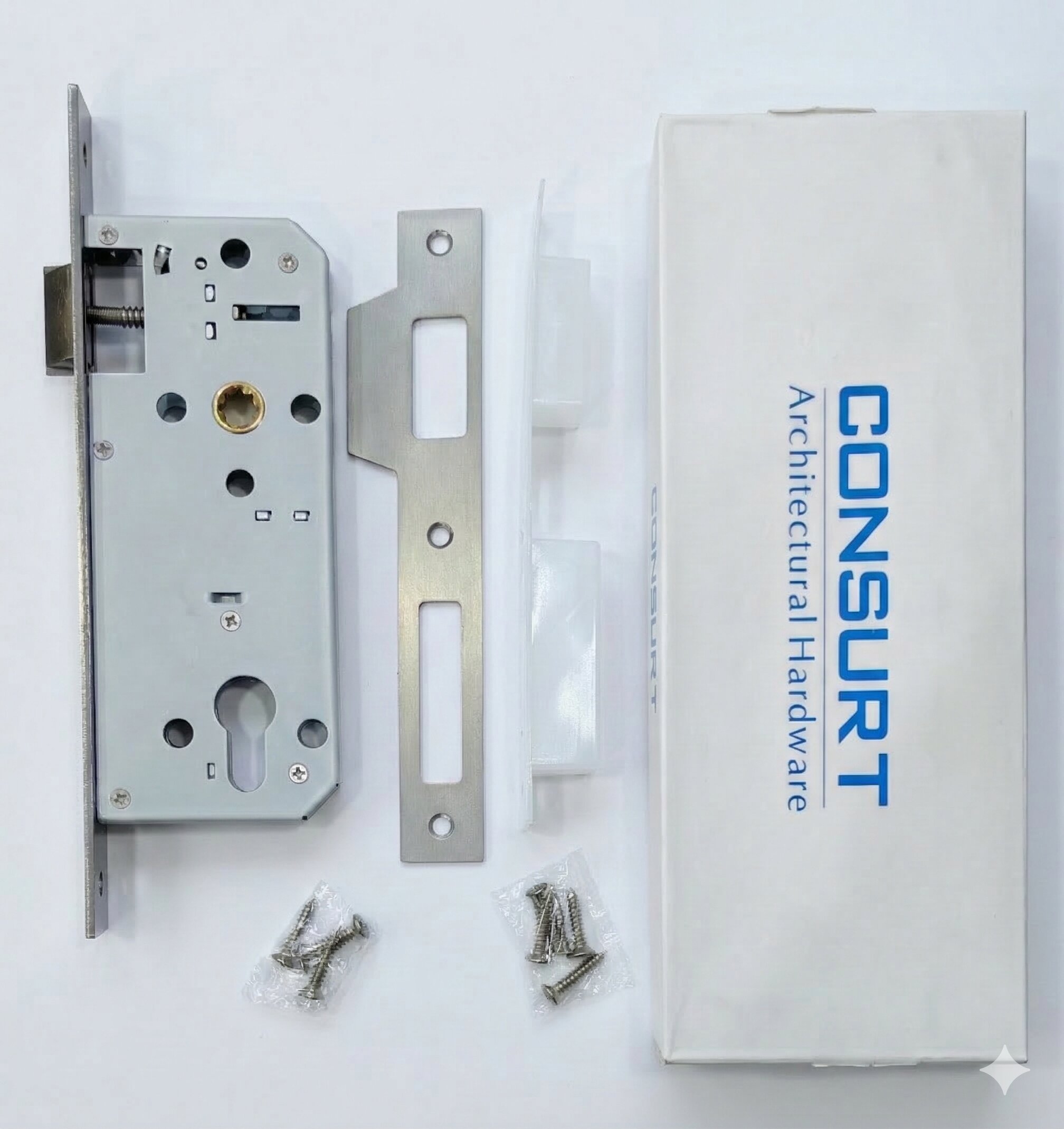

This is a premium-grade, heavy-duty lock body designed for commercial and residential applications, featuring robust stainless steel construction for enhanced security and durability.

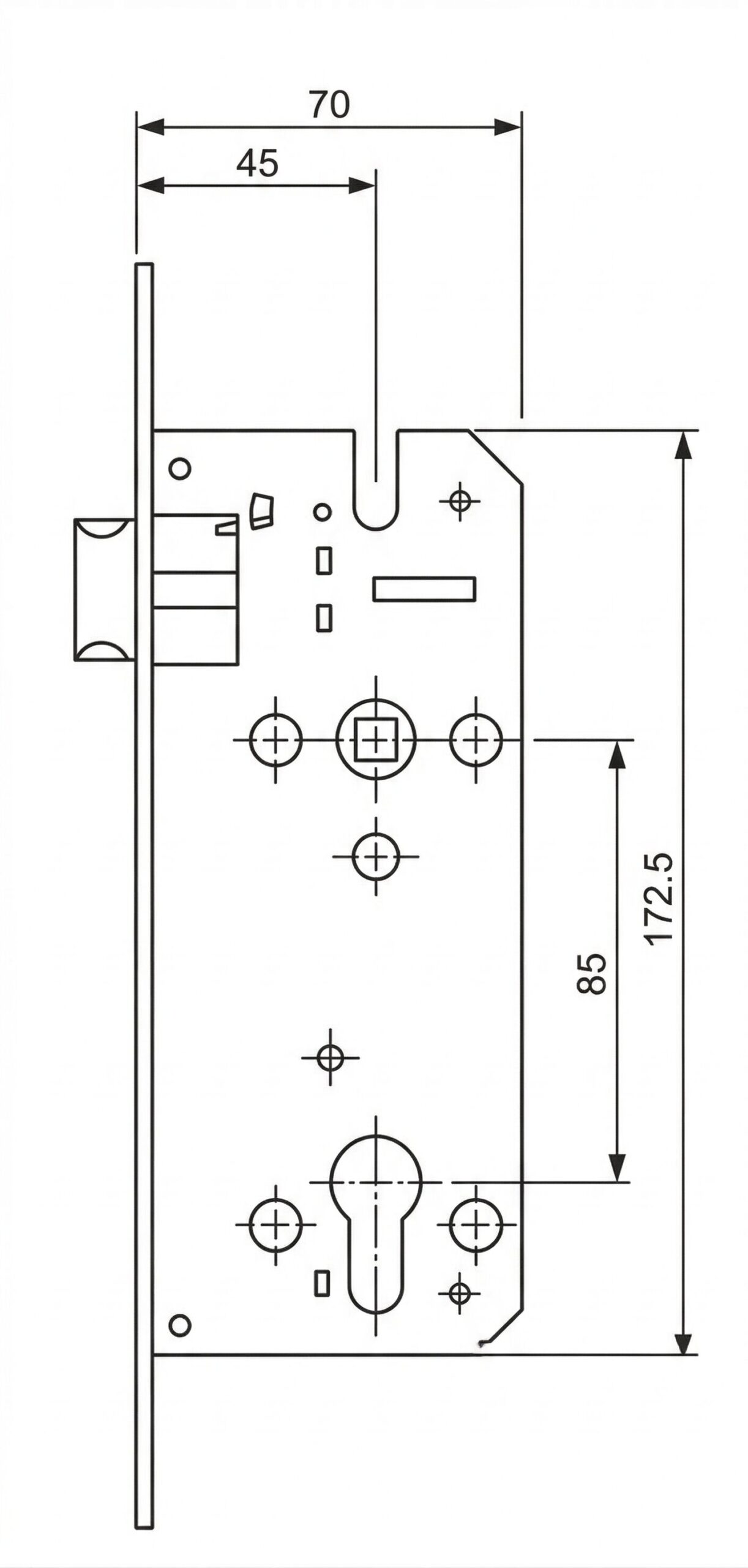

1. Core Dimensions (as per image)
The dimensioning adheres to standard international mortise lock profiles.
-
Backset: 45 mm (Distance from faceplate to center of cylinder/spindle hole).
-
Center-to-Center (PZ): 85 mm (Distance between the center of the handle spindle and the center of the key cylinder hole).
-
Case Depth: 70 mm (Overall depth of the lock body inserted into the door).
-
Case Height: 172.5 mm (Overall height of the lock body case).
2. Features & Components
-
Latch Bolt: Reversible latch bolt, suitable for both left-hand and right-hand doors without requiring special tools.
-
Spindle Hub: Standard 8mm x 8mm follower with an internal spring-loaded system to minimize handle wobble.
-
Cylinder Compatibility: Designed for use with a Euro-profile cylinder lock.
-
Side Holes: Pre-drilled side holes to facilitate screw-through fixing for furniture/handles, adding stability and security.
-
Material: Premium Grade Stainless Steel (SS304)
-
Case Material: Stainless Steel for superior strength and corrosion resistance compared to galvanized steel.
-
Faceplate: Stainless Steel
-
Latch Bolt: Solid Stainless Steel for maximum durability against daily use.
-
Brand: CONSURT
-
Country of Origin: Made in China
This specification combines the precise measurements from the drawing with your material, branding, and sourcing requirements to create a complete technical description.
